What is the Well Finder Filter?

How to Access the Well Finder Filter

Open the Filters panel, then select the Well Finder filter.

Supported Search Types

The Well Finder filter supports the following identifiers:

API (10, 12, 14)
UWI
Simple Id
Id

Well Finder Limits

Up to 4,000 values can be searched at one time.
Lists can be copied and pasted directly from Excel or CSV files.

How to Use the Well Finder Filter

In the first column, select the identifier type you want to search by. In this example, the search uses API values.
Copy and paste your values into the first column, then click Find # Values.

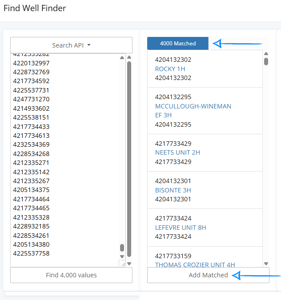

Review the matched wells in the second column, then click Add Matched.

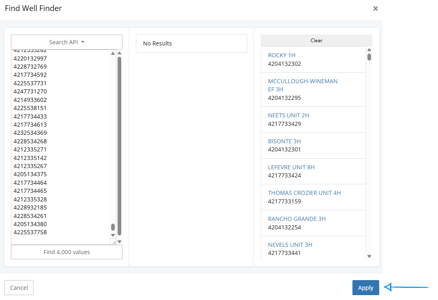

Once the wells appear in the third column, click Apply.

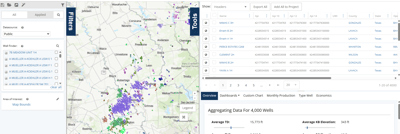

The selected wells will load into your:
- Map
- List
- Analytics results

Important Notes

The Well Finder filter supports up to 4,000 values at one time.
If more than 4,000 values are entered, the wells will not load and an error message will appear.
The same workflow can be used with API, UWI, Id, or Simple Id values.

How do I search by multiple API numbers?

Frequently Asked Questions

Q: Can I paste API numbers directly from Excel?
A: Yes. API numbers and other supported identifiers can be copied directly from Excel or CSV files and pasted into the Well Finder filter.

Q: What identifiers can I search in the Well Finder filter?
A: The Well Finder filter supports API, API10, API12, API14, UWI, Simple Id, and Id values.

Q: What happens if I enter more than 4,000 values?
A: The Well Finder filter supports up to 4,000 values at one time. If more than 4,000 values are entered, the wells will not load and an error message will appear.

Q: Where is the Well Finder filter located?
A: The Well Finder filter is located within the Filters panel.
