This article will guide you through the steps to view a chart displaying type well by year.
Begin by applying filters to select the specific wells of interest. Next, proceed to your production dashboard and group your analytics by the "Vintage" category.

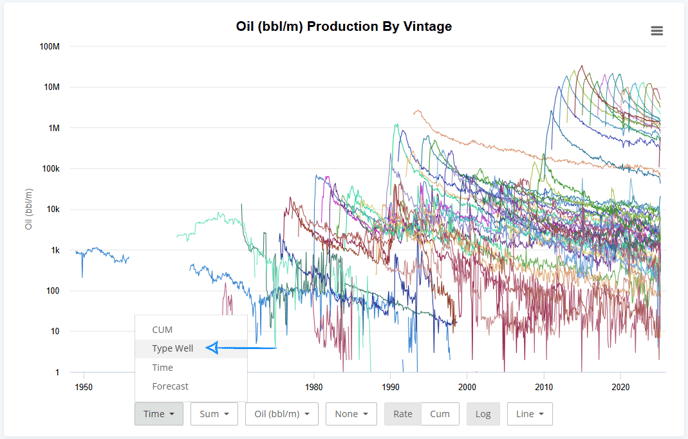

Scroll to the Oil Production by Vintage chart, and adjust the "time" to "type well"

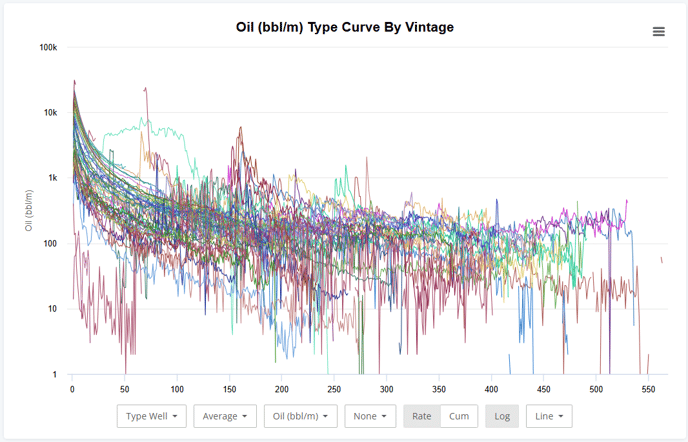

With this grouping of wells, there is production pre-1950's that adds a lot of extra noise that doesn't apply to what we are evaluating here. Let's take a another step to clean up our chart.

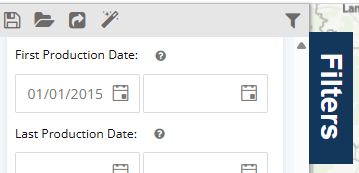

For this evaluation, we are looking for wells that started producing since 2015. The first production date will limit our results further to the wells we are interested in.

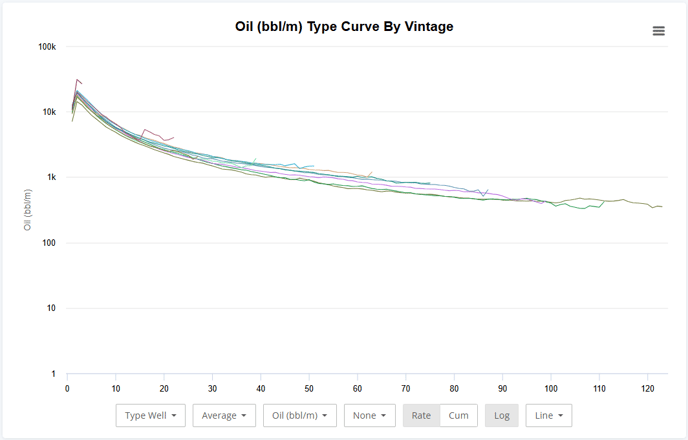

The resulting chart will provide a clear and relevant basis for our evaluation.

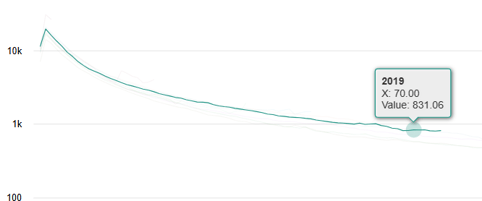

Hovering over any of the chart points, will show which year is represented with each line.

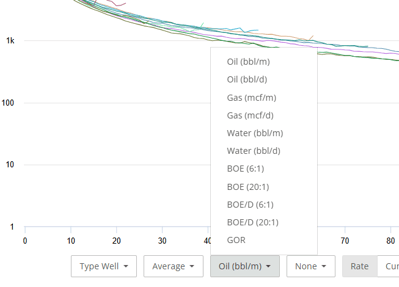

Similar evaluations can be conducted for gas, water, barrels of oil equivalent (BOE), gas-oil ratio (GOR), and other metrics by adjusting the selection at the bottom of the chart.

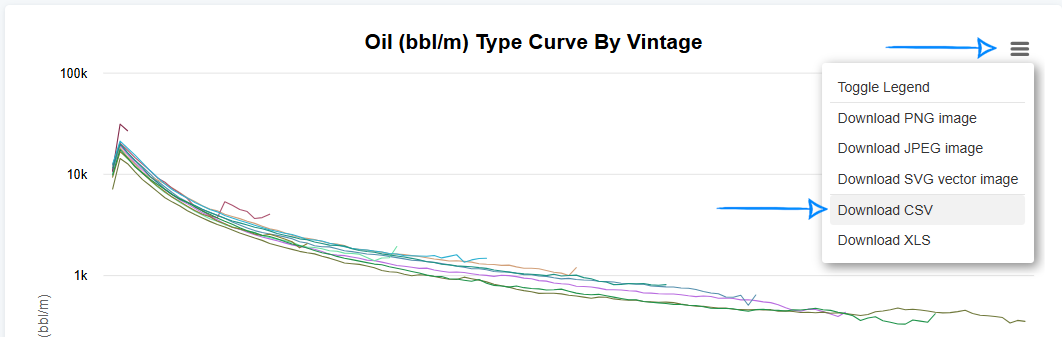

Furthermore, you can easily export the details of this chart for further analysis. Simply click on the hamburger button
located in the top right corner of the chart, and choose to download the data in either CSV or XLS format. The chart image can be downloaded as a PNG or JPEG.
Explore other articles by searching the topics on the left or if you have any questions feel free to email support@welldatabase.com
