How do I export a shape drawn on the map?

You have the ability to create a custom area of interest on your map, which you can then export in formats like shapefile or GeoJSON for integration with other systems.

Area of Interest

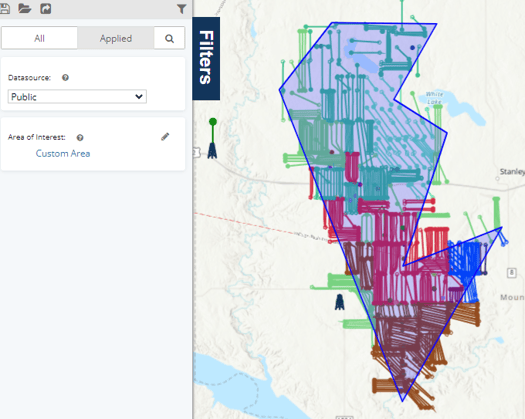

Start by outlining a specific area of interest directly on your map by using a custom area of interest. Click here to learn how to create a custom area of interest

Export the Shape

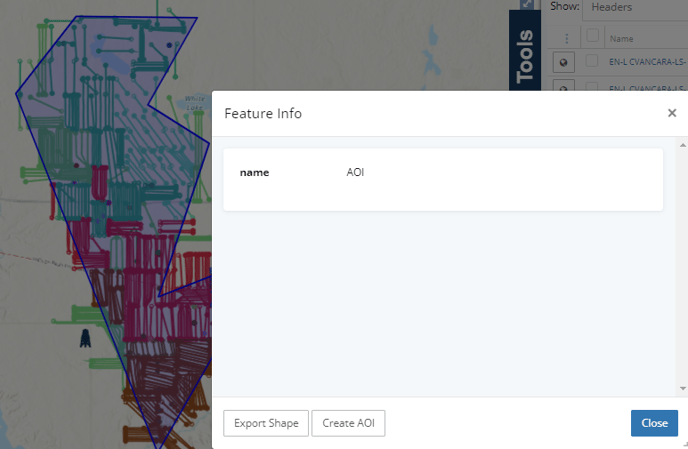

Press and hold the Shift key while left-clicking on the shape to bring up the pop-up menu that offers the option to "export shape."

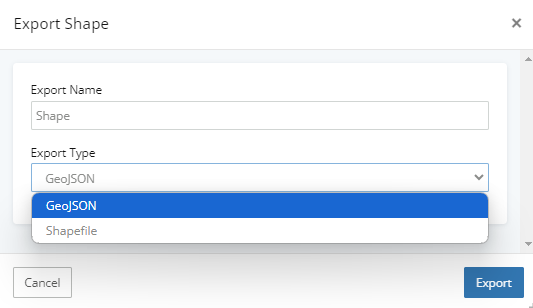

Select "Export Shape," give the shapefile a unique name, choose either Shapefile or GeoJSON as your desired format,  and then click on the Export button to complete the process.

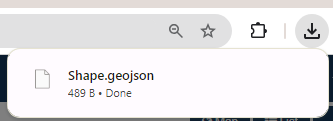

The exported file will be saved to your computer's downloads folder or can be accessed by clicking the downward arrow in your browser's toolbar.

Shapes exported will use EPSG:4326/ WGS-84 CRS.


Explore other articles by searching the topics on the left or if you have any questions feel free to email support@welldatabase.com
